Vismach

Сообщение nkp »

Модуль Vismach предназначен для визуализации станков , роботов .
Используя в своей основе функции OpenGL и питон позволяет рисовать различные примитивы,как то - цилиндр,параллелепипед, шар и др.
Есть привязка к хал - прописывая пины мы можем из емс управлять движениями определенных частей...
минимальный пример здесь:
draw.tar
(10 КБ) 577 скачиваний
к хал "привязаны" только две функции :
HalRotate - вращение
HalTranslate - размещение на форме (если я правильно понял)

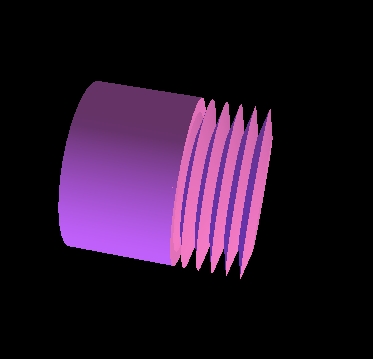

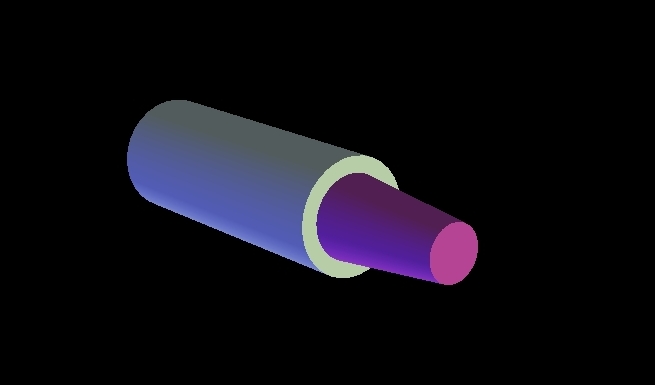

так вот - если "привязать" прорисовку примитивов также к хал - то несложно будет сделать визуализацию обработки...
--------------------
сам модуль vismach:

Код: Выделить всё

import rs274.OpenGLTk, Tkinter, signal
from minigl import *
from math import *
import glnav

class Collection(object):
    def __init__(self, parts):
	self.parts = parts
	self.vol = 0

    def traverse(self):
	for p in self.parts:
	    if hasattr(p, "apply"):
		p.apply()
	    if hasattr(p, "capture"):
		p.capture()
	    if hasattr(p, "draw"):
		p.draw()
	    if hasattr(p, "traverse"):
		p.traverse()
	    if hasattr(p, "unapply"):
		p.unapply()

    def volume(self):
	if hasattr(self, "vol") and self.vol != 0:
	    vol = self.vol
	else:
	    vol = sum(part.volume() for part in self.parts)
	#print "Collection.volume", vol
	return vol

    # a collection consisting of overlapping parts will have an incorrect
    # volume, because overlapping volumes will be counted twice.  If the
    # correct volume is known, it can be set using this method
    def set_volume(self,vol):
	self.vol = vol;

class Translate(Collection):
    def __init__(self, parts, x, y, z):
	self.parts = parts
	self.where = x, y, z

    def apply(self):
	glPushMatrix()
	glTranslatef(*self.where)

    def unapply(self):
	glPopMatrix()

class Scale(Collection):
    def __init__(self, parts, x, y, z):
	self.parts = parts
	self.scaleby = x, y, z

    def apply(self):
	glPushMatrix()
	glScalef(*self.scaleby)

    def unapply(self):
	glPopMatrix()

class HalTranslate(Collection):
    def __init__(self, parts, comp, var, x, y, z):
	self.parts = parts
	self.where = x, y, z
	self.comp = comp
	self.var = var

    def apply(self):
	x, y, z = self.where
	v = self.comp[self.var]

	glPushMatrix()
	glTranslatef(x*v, y*v, z*v)

    def unapply(self):
	glPopMatrix()


class HalRotate(Collection):
    def __init__(self, parts, comp, var, th, x, y, z):
	self.parts = parts
	self.where = th, x, y, z
	self.comp = comp
	self.var = var

    def apply(self):
	th, x, y, z = self.where
	glPushMatrix()
	glRotatef(th * self.comp[self.var], x, y, z)

    def unapply(self):
	glPopMatrix()


class Rotate(Collection):
    def __init__(self, parts, th, x, y, z):
	self.parts = parts
	self.where = th, x, y, z

    def apply(self):
	th, x, y, z = self.where
	glPushMatrix()
	glRotatef(th, x, y, z)

    def unapply(self):
	glPopMatrix()


class Track(Collection):
    '''move and rotate an object to point from one capture()'d
	coordinate system to another.
	we need "world" to convert coordinates from GL_MODELVIEW coordinates
	to our coordinate system'''
    def __init__(self, parts, position, target, world):
	self.parts = parts
	self.target = target
	self.position = position
	self.world2view = world

    def angle_to(self,x,y,z):
	'''returns polar coordinates in degrees to a point from the origin
	a rotates around the x-axis; b rotates around the y axis; r is the distance'''
	azimuth = atan2(y, x)*180/pi #longitude
	elevation = atan2(z, sqrt(x**2 + y**2))*180/pi
	radius = sqrt(x**2+y**2+z**2)
	return((azimuth, elevation, radius))

    def map_coords(self,tx,ty,tz,transform):
	# now we have to transform them to the world frame
	wx = tx*transform[0]+ty*transform[4]+tz*transform[8]+transform[12]
	wy = tx*transform[1]+ty*transform[5]+tz*transform[9]+transform[13]
	wz = tx*transform[2]+ty*transform[6]+tz*transform[10]+transform[14]
	return([wx,wy,wz])


    def apply(self):
	#make sure we have something to work with first
	if (self.world2view.t == []):
		#something's borkled - give up
		print "vismach.py: Track: why am i here? world is not in the scene yet"
		glPushMatrix()
		return

	view2world = invert(self.world2view.t)

	px, py, pz = self.position.t[12:15]
	px, py, pz = self.map_coords(px,py,pz,view2world)
	tx, ty, tz = self.target.t[12:15]
	tx, ty, tz = self.map_coords(tx,ty,tz,view2world)
	dx = tx - px; dy = ty - py; dz = tz - pz;
	(az,el,r) = self.angle_to(dx,dy,dz)
	if(hasattr(HUD, "debug_track") and HUD.debug_track == 1):
		HUD.strs = []
		HUD.strs += ["current coords: %3.4f %3.4f %3.4f " % (px, py, pz)]
		HUD.strs += ["target coords: %3.4f %3.4f %3.4f" %  (tx, ty, tz)]
		HUD.strs += ["az,el,r: %3.4f %3.4f %3.4f" %  (az,el,r)]
	glPushMatrix()
	glTranslatef(px,py,pz)
	glRotatef(az-90,0,0,1)
	glRotatef(el-90,1,0,0)


    def unapply(self):
		glPopMatrix()

class CoordsBase(object):
    def __init__(self, *args):
	self._coords = args
	self.q = gluNewQuadric()

    def coords(self):
	return self._coords

# give endpoint X values and radii
# resulting cylinder is on the X axis
class CylinderX(CoordsBase):
    def draw(self):
	x1, r1, x2, r2 = self.coords()
	if x1 > x2:
	    tmp = x1
	    x1 = x2
	    x2 = tmp
	    tmp = r1
	    r1 = r2
	    r2 = tmp
	glPushMatrix()
	# GL creates cylinders along Z, so need to rotate
	z1 = x1
	z2 = x2
	glRotatef(90,0,1,0)
	# need to translate the whole thing to z1
	glTranslatef(0,0,z1)
	# the cylinder starts out at Z=0
	gluCylinder(self.q, r1, r2, z2-z1, 32, 1)
	# bottom cap
	glRotatef(180,1,0,0)
	gluDisk(self.q, 0, r1, 32, 1)
	glRotatef(180,1,0,0)
	# the top cap needs flipped and translated
	glPushMatrix()
	glTranslatef(0,0,z2-z1)
	gluDisk(self.q, 0, r2, 32, 1)
	glPopMatrix()
	glPopMatrix()

    def volume(self):
	x1, r1, x2, r2 = self.coords()
	# actually a frustum of a cone
	vol = 3.1415927/3.0 * abs(x1-x2)*(r1*r1+r1*r2+r2*r2)
	#print "CylinderX.volume", vol
	return vol


# give endpoint Y values and radii
# resulting cylinder is on the Y axis
class CylinderY(CoordsBase):
    def __init__(self, y1, r1, y2, r2):
	self._coords = y1, r1, y2, r2
	self.q = gluNewQuadric()

    def draw(self):
	y1, r1, y2, r2 = self.coords()
	if y1 > y2:
	    tmp = y1
	    y1 = y2
	    y2 = tmp
	    tmp = r1
	    r1 = r2
	    r2 = tmp
	glPushMatrix()
	# GL creates cylinders along Z, so need to rotate
	z1 = y1
	z2 = y2
	glRotatef(-90,1,0,0)
	# need to translate the whole thing to z1
	glTranslatef(0,0,z1)
	# the cylinder starts out at Z=0
	gluCylinder(self.q, r1, r2, z2-z1, 32, 1)
	# bottom cap
	glRotatef(180,1,0,0)
	gluDisk(self.q, 0, r1, 32, 1)
	glRotatef(180,1,0,0)
	# the top cap needs flipped and translated
	glPushMatrix()
	glTranslatef(0,0,z2-z1)
	gluDisk(self.q, 0, r2, 32, 1)
	glPopMatrix()
	glPopMatrix()

    def volume(self):
	y1, r1, y2, r2 = self.coords()
	# actually a frustum of a cone
	vol = 3.1415927/3.0 * abs(y1-y2)*(r1*r1+r1*r2+r2*r2)
	#print "CylinderY.volume", vol
	return vol


class CylinderZ(CoordsBase):
    def draw(self):
	z1, r1, z2, r2 = self.coords()
	if z1 > z2:
	    tmp = z1
	    z1 = z2
	    z2 = tmp
	    tmp = r1
	    r1 = r2
	    r2 = tmp
	# need to translate the whole thing to z1
	glPushMatrix()
	glTranslatef(0,0,z1)
	# the cylinder starts out at Z=0
	gluCylinder(self.q, r1, r2, z2-z1, 32, 1)
	# bottom cap
	glRotatef(180,1,0,0)
	gluDisk(self.q, 0, r1, 32, 1)
	glRotatef(180,1,0,0)
	# the top cap needs flipped and translated
	glPushMatrix()
	glTranslatef(0,0,z2-z1)
	gluDisk(self.q, 0, r2, 32, 1)
	glPopMatrix()
	glPopMatrix()

    def volume(self):
	z1, r1, z2, r2 = self.coords()
	# actually a frustum of a cone
	vol = 3.1415927/3.0 * abs(z1-z2)*(r1*r1+r1*r2+r2*r2)
	#print "CylinderZ.volume", vol
	return vol

# give center and radius
class Sphere(CoordsBase):
    def draw(self):
	x, y, z, r = self.coords()
	# need to translate the whole thing to x,y,z
	glPushMatrix()
	glTranslatef(x,y,z)
	# the sphere starts out at the origin
	gluSphere(self.q, r, 32, 16)
	glPopMatrix()

    def volume(self):
	x, y, z, r = self.coords()
	vol = 1.3333333*3.1415927*r*r*r
	#print "Sphere.volume", vol
	return vol


# triangular plate in XY plane
# specify the corners Z values for each side
class TriangleXY(CoordsBase):
    def draw(self):
	x1, y1, x2, y2, x3, y3, z1, z2 = self.coords()
	x12 = x1-x2
	y12 = y1-y2
	x13 = x1-x3
	y13 = y1-y3
	cross = x12*y13 - x13*y12
	if cross < 0:
	    tmp = x2
	    x2 = x3
	    x3 = tmp
	    tmp = y2
	    y2 = y3
	    y3 = tmp
        if z1 > z2:
	    tmp = z1
	    z1 = z2
	    z2 = tmp
	x12 = x1-x2
	y12 = y1-y2
	x23 = x2-x3
	y23 = y2-y3
	x31 = x3-x1
	y31 = y3-y1
        glBegin(GL_QUADS)
	# side 1-2
	h = hypot(x12,y12)
        glNormal3f(-y12/h,x12/h,0)
        glVertex3f(x1, y1, z1)
        glVertex3f(x2, y2, z1)
        glVertex3f(x2, y2, z2)
        glVertex3f(x1, y1, z2)
	# side 2-3
	h = hypot(x23,y23)
        glNormal3f(-y23/h,x23/h,0)
        glVertex3f(x2, y2, z1)
        glVertex3f(x3, y3, z1)
        glVertex3f(x3, y3, z2)
        glVertex3f(x2, y2, z2)
	# side 3-1
	h = hypot(x31,y31)
        glNormal3f(-y31/h,x31/h,0)
        glVertex3f(x3, y3, z1)
        glVertex3f(x1, y1, z1)
        glVertex3f(x1, y1, z2)
        glVertex3f(x3, y3, z2)
        glEnd()
        glBegin(GL_TRIANGLES)
	# upper face
        glNormal3f(0,0,1)
        glVertex3f(x1, y1, z2)
        glVertex3f(x2, y2, z2)
        glVertex3f(x3, y3, z2)
	# lower face
        glNormal3f(0,0,-1)
        glVertex3f(x1, y1, z1)
        glVertex3f(x3, y3, z1)
        glVertex3f(x2, y2, z1)
        glEnd()

    def volume(self):
	x1, y1, x2, y2, x3, y3, z1, z2 = self.coords()
	# compute pts 2 and 3 relative to 1 (puts pt1 at origin)
	x2 = x2-x1
	x3 = x3-x1
	y2 = y2-y1
	y3 = y3-y1
	# compute area of triangle
	area = 0.5*abs(x2*y3 - x3*y2)
	thk = abs(z1-z2)
	vol = area*thk
	#print "TriangleXY.volume = area * thickness)",vol, area, thk
	return vol

# triangular plate in XZ plane
class TriangleXZ(TriangleXY):
    def coords(self):
	x1, z1, x2, z2, x3, z3, y1, y2 = TriangleXY.coords(self)
	return x1, z1, x2, z2, x3, z3, -y1, -y2

    def draw(self):
	glPushMatrix()
	glRotatef(90,1,0,0)
	# create the triangle in XY plane
	TriangleXY.draw(self)
	# bottom cap
	glPopMatrix()

    def volume(self):
	vol = TriangleXY.volume(self)
	#print " TriangleXZ.volume",vol
	return vol

# triangular plate in YZ plane
class TriangleYZ(TriangleXY):
    def coords(self):
	y1, z1, y2, z2, y3, z3, x1, x2 = TriangleXY.coords(self)
	return z1, y1, z2, y2, z3, y3, -x1, -x2

    def draw(self):
	glPushMatrix()
	glRotatef(90,0,-1,0)
	# create the triangle in XY plane
	TriangleXY.draw(self)
	# bottom cap
	glPopMatrix()

    def volume(self):
	vol = TriangleXY.volume(self)
	#print " TriangleYZ.volume",vol
	return vol


class ArcX(CoordsBase):
    def draw(self):
	x1, x2, r1, r2, a1, a2, steps = self.coords()
	if x1 > x2:
	    tmp = x1
	    x1 = x2
	    x2 = tmp
	if r1 > r2:
	    tmp = r1
	    r1 = r2
	    r2 = tmp
	while a1 > a2:
	    a2 = a2 + 360
	astep = ((a2-a1)/steps)*(pi/180)
	a1rads = a1 * (pi/180)
	# positive X end face
	glBegin(GL_QUAD_STRIP)
	glNormal3f(1,0,0)
	n = 0
	while n <= steps:
	    angle = a1rads+n*astep
	    s = sin(angle)
	    c = cos(angle)
	    glVertex3f(x2, r1*s, r1*c)
	    glVertex3f(x2, r2*s, r2*c)
	    n = n + 1

	glEnd()
	# negative X end face
	glBegin(GL_QUAD_STRIP)
	glNormal3f(-1,0,0)
	n = 0
	while n <= steps:
	    angle = a1rads+n*astep
	    s = sin(angle)
	    c = cos(angle)
	    glVertex3f(x1, r1*s, r1*c)
	    glVertex3f(x1, r2*s, r2*c)
	    n = n + 1
	glEnd()
	# inner diameter
	glBegin(GL_QUAD_STRIP)
	n = 0
	while n <= steps:
	    angle = a1rads+n*astep
	    s = sin(angle)
	    c = cos(angle)
	    glNormal3f(0,-s, -c)
	    glVertex3f(x1, r1*s, r1*c)
	    glVertex3f(x2, r1*s, r1*c)
	    n = n + 1
	glEnd()
	# outer diameter
	glBegin(GL_QUAD_STRIP)
	n = 0
	while n <= steps:
	    angle = a1rads+n*astep
	    s = sin(angle)
	    c = cos(angle)
	    glNormal3f(0, s, c)
	    glVertex3f(x1, r2*s, r2*c)
	    glVertex3f(x2, r2*s, r2*c)
	    n = n + 1
	glEnd()
	# end plates
	glBegin(GL_QUADS)
	# first end plate
	angle = a1 * (pi/180)
	s = sin(angle)
	c = cos(angle)
	glNormal3f(0, -c, s)
	glVertex3f(x1, r2*s, r2*c)
	glVertex3f(x2, r2*s, r2*c)
	glVertex3f(x2, r1*s, r1*c)
	glVertex3f(x1, r1*s, r1*c)
	# other end
	angle = a2 * (pi/180)
	s = sin(angle)
	c = cos(angle)
	glNormal3f(0, c, -s)
	glVertex3f(x1, r2*s, r2*c)
	glVertex3f(x2, r2*s, r2*c)
	glVertex3f(x2, r1*s, r1*c)
	glVertex3f(x1, r1*s, r1*c)
	glEnd()

    def volume(self):
	x1, x2, r1, r2, a1, a2, steps = self.coords()
	if x1 > x2:
	    tmp = x1
	    x1 = x2
	    x2 = tmp
	if r1 > r2:
	    tmp = r1
	    r1 = r2
	    r2 = tmp
	while a1 > a2:
	    a2 = a2 + 360
	height = x2 - x1
	angle = a2 - a1
	area = (angle/360.0)*pi*(r2*r2-r1*r1)
	vol = area * height
	#print "Arc.volume = angle * area * height",vol, angle, area, height
	return vol




# six coordinate version - specify each side of the box
class Box(CoordsBase):
    def draw(self):
        x1, y1, z1, x2, y2, z2 = self.coords()
        if x1 > x2:
	    tmp = x1
	    x1 = x2
	    x2 = tmp
        if y1 > y2:
	    tmp = y1
	    y1 = y2
	    y2 = tmp
        if z1 > z2:
	    tmp = z1
	    z1 = z2
	    z2 = tmp

        glBegin(GL_QUADS)
	# bottom face
        glNormal3f(0,0,-1)
        glVertex3f(x2, y1, z1)
        glVertex3f(x1, y1, z1)
        glVertex3f(x1, y2, z1)
        glVertex3f(x2, y2, z1)
	# positive X face
        glNormal3f(1,0,0)
        glVertex3f(x2, y1, z1)
        glVertex3f(x2, y2, z1)
        glVertex3f(x2, y2, z2)
        glVertex3f(x2, y1, z2)
	# positive Y face
        glNormal3f(0,1,0)
        glVertex3f(x1, y2, z1)
        glVertex3f(x1, y2, z2)
        glVertex3f(x2, y2, z2)
        glVertex3f(x2, y2, z1)
	# negative Y face
        glNormal3f(0,-1,0)
        glVertex3f(x2, y1, z2)
        glVertex3f(x1, y1, z2)
        glVertex3f(x1, y1, z1)
        glVertex3f(x2, y1, z1)
	# negative X face
        glNormal3f(-1,0,0)
        glVertex3f(x1, y1, z1)
        glVertex3f(x1, y1, z2)
        glVertex3f(x1, y2, z2)
        glVertex3f(x1, y2, z1)
	# top face
        glNormal3f(0,0,1)
        glVertex3f(x1, y2, z2)
        glVertex3f(x1, y1, z2)
        glVertex3f(x2, y1, z2)
        glVertex3f(x2, y2, z2)
        glEnd()

    def volume(self):
        x1, y1, z1, x2, y2, z2 = self.coords()
        vol = abs((x1-x2)*(y1-y2)*(z1-z2))
	#print "Box.volume", vol
	return vol


# specify the width in X and Y, and the height in Z
# the box is centered on the origin
class BoxCentered(Box):
    def __init__(self, xw, yw, zw):
	Box.__init__(self, -xw/2.0, -yw/2.0, -zw/2.0, xw/2.0, yw/2.0, zw/2.0)

# specify the width in X and Y, and the height in Z
# the box is centered in X and Y, and runs from Z=0 up
# (or down) to the specified Z value
class BoxCenteredXY(Box):
    def __init__(self, xw, yw, zw):
	Box.__init__(self, -xw/2.0, -yw/2.0, 0, xw/2.0, yw/2.0, zw)

# capture current transformation matrix
# note that this tranforms from the current coordinate system
# to the viewport system, NOT to the world system
class Capture(object):
    def __init__(self):
	self.t = []

    def capture(self):
	self.t = glGetDoublev(GL_MODELVIEW_MATRIX)

    def volume(self):
	return 0.0

# function to invert a transform matrix
# based on http://steve.hollasch.net/cgindex/math/matrix/afforthinv.c
# with simplifications since we don't do scaling

# This function inverts a 4x4 matrix that is affine and orthogonal.  In
# other words, the perspective components are [0 0 0 1], and the basis
# vectors are orthogonal to each other.  In addition, the matrix must
# not do scaling

def invert(src):
	# make a copy
	inv=src[:]
	# The inverse of the upper 3x3 is the transpose (since the basis
	# vectors are orthogonal to each other.
	inv[1],inv[4] = inv[4],inv[1]
	inv[2],inv[8] = inv[8],inv[2]
	inv[6],inv[9] = inv[9],inv[6]
	# The inverse of the translation component is just the negation
	# of the translation after dotting with the new upper3x3 rows. */
	inv[12] = -(src[12]*inv[0] + src[13]*inv[4] + src[14]*inv[8])
	inv[13] = -(src[12]*inv[1] + src[13]*inv[5] + src[14]*inv[9])
	inv[14] = -(src[12]*inv[2] + src[13]*inv[6] + src[14]*inv[10])
	return inv

class Hud(object):
	'''head up display - draws a semi-transparent text box.
	use HUD.strs for things that must be updated constantly,
	and HUD.show("stuff") for one-shot things like error messages'''
	def __init__(self,  showme=1):
		self.app = []
		self.strs = []
		self.messages = []
		self.showme = 0

	def show(self, string="xyzzy"):
		self.showme = 1
		if string != "xyzzy":
			self.messages += [str(string)]

	def hide(self):
		self.showme = 0

	def clear(self):
		self.messages = []

	def draw(self):
		drawtext = self.strs + self.messages
		self.lines = len(drawtext)
		#draw head-up-display
		#see axis.py for more font/color configurability
		if ((self.showme == 0) or (self.lines == 0)):
			return

		glMatrixMode(GL_PROJECTION)
		glPushMatrix()
		glLoadIdentity()

		#pointer to font?
		fontbase = int(self.app.loadbitmapfont("9x15"))
		char_width, char_height = 9, 15
		xmargin,ymargin = 5,5
		ypos = float(self.app.winfo_height())

		glOrtho(0.0, self.app.winfo_width(), 0.0, ypos, -1.0, 1.0)
		glMatrixMode(GL_MODELVIEW)
		glPushMatrix()
		glLoadIdentity()

		#draw the text box
		maxlen = max([len(p) for p in drawtext])
		box_width = maxlen * char_width
		glDepthFunc(GL_ALWAYS)
		glDepthMask(GL_FALSE)
		glDisable(GL_LIGHTING)
		glEnable(GL_BLEND)
		glEnable(GL_NORMALIZE)
		glBlendFunc(GL_ONE, GL_CONSTANT_ALPHA)
		glColor3f(0.2,0,0)
		glBlendColor(0,0,0,0.5) #rgba
		glBegin(GL_QUADS)
		glVertex3f(0, ypos, 1) #upper left
		glVertex3f(0, ypos - 2*ymargin - char_height*len(drawtext), 1) #lower left
		glVertex3f(box_width+2*xmargin, ypos - 2*ymargin - char_height*len(drawtext), 1) #lower right
		glVertex3f(box_width+2*xmargin,  ypos , 1) #upper right
		glEnd()
		glDisable(GL_BLEND)
		glEnable(GL_LIGHTING)

		#fill the box with text
		maxlen = 0
		ypos -= char_height+ymargin
		i=0
		glDisable(GL_LIGHTING)
		glColor3f(0.9,0.9,0.9)
		for string in drawtext:
			maxlen = max(maxlen, len(string))
		#	if i < len(homed) and homed[i]:
		#		glRasterPos2i(6, ypos)
		#		glBitmap(13, 16, 0, 3, 17, 0, homeicon)
			glRasterPos2i(xmargin, int(ypos))
			for char in string:
				glCallList(fontbase + ord(char))
		#	if i < len(homed) and limit[i]:
		#		glBitmap(13, 16, -5, 3, 17, 0, limiticon)
			ypos -= char_height
			i = i + 1
		glDepthFunc(GL_LESS)
		glDepthMask(GL_TRUE)
		glEnable(GL_LIGHTING)

		glPopMatrix()
		glMatrixMode(GL_PROJECTION)
		glPopMatrix()
		glMatrixMode(GL_MODELVIEW)


class O(rs274.OpenGLTk.Opengl):
    def __init__(self, *args, **kw):
        rs274.OpenGLTk.Opengl.__init__(self, *args, **kw)
        self.r_back = self.g_back = self.b_back = 0
	#self.q1 = gluNewQuadric()
	#self.q2 = gluNewQuadric()
	#self.q3 = gluNewQuadric()
	self.plotdata = []
	self.plotlen = 4000
	#does not show HUD by default
	self.hud = Hud()

    def basic_lighting(self):
        self.activate()
        glLightfv(GL_LIGHT0, GL_POSITION, (1, -1, .5, 0))
        glLightfv(GL_LIGHT0, GL_AMBIENT, (.2,.2,.2,0))
        glLightfv(GL_LIGHT0, GL_DIFFUSE, (.6,.6,.4,0))
        glLightfv(GL_LIGHT0+1, GL_POSITION, (-1, -1, .5, 0))
        glLightfv(GL_LIGHT0+1, GL_AMBIENT, (.0,.0,.0,0))
        glLightfv(GL_LIGHT0+1, GL_DIFFUSE, (.0,.0,.4,0))
        glMaterialfv(GL_FRONT_AND_BACK, GL_AMBIENT_AND_DIFFUSE, (1,1,1,0))
	glDisable(GL_CULL_FACE)
        glEnable(GL_LIGHTING)
        glEnable(GL_LIGHT0)
        glEnable(GL_LIGHT0+1)
        glDepthFunc(GL_LESS)
        glEnable(GL_DEPTH_TEST)
        glMatrixMode(GL_MODELVIEW)
        glLoadIdentity()




    def redraw(self, *args):
        if self.winfo_width() == 1: return
        self.model.traverse()
	# current coords: world
	# the matrices tool2view, work2view, and world2view
	# transform from tool/work/world coords to viewport coords
	# if we want to draw in tool coords, we need to do
	# "tool -> view -> world" (since the current frame is world)
	# and if we want to draw in work coords, we need
	# "work -> view -> world".  For both, we need to invert
	# the world2view matrix to do the second step
	view2world = invert(self.world2view.t)
	# likewise, for backplot, we want to transform the tooltip
	# position from tool coords (where it is [0,0,0]) to work
	# coords, so we need tool -> view -> work
	# so lets also invert the work2view matrix
	view2work = invert(self.work2view.t)

	# since backplot lines only need vertexes, not orientation,
	# and the tooltip is at the origin, getting the tool coords
	# is easy
	tx, ty, tz = self.tool2view.t[12:15]
	# now we have to transform them to the work frame
	wx = tx*view2work[0]+ty*view2work[4]+tz*view2work[8]+view2work[12]
	wy = tx*view2work[1]+ty*view2work[5]+tz*view2work[9]+view2work[13]
	wz = tx*view2work[2]+ty*view2work[6]+tz*view2work[10]+view2work[14]
	# wx, wy, wz are the values to use for backplot
	# so we save them in a buffer
        if len(self.plotdata) == self.plotlen:
	    del self.plotdata[:self.plotlen / 10]
	point = [ wx, wy, wz ]
	if not self.plotdata or point != self.plotdata[-1]:
	    self.plotdata.append(point)

	# now lets draw something in the tool coordinate system
	#glPushMatrix()
	# matrixes take effect in reverse order, so the next
	# two lines do "tool -> view -> world"
	#glMultMatrixd(view2world)
	#glMultMatrixd(self.tool2view.t)

	# do drawing here
	# cylinder normally goes to +Z, we want it down
	#glTranslatef(0,0,-60)
	#gluCylinder(self.q1, 20, 20, 60, 32, 16)

	# back to world coords
	#glPopMatrix()


	# we can also draw in the work coord system
	glPushMatrix()
	# "work -> view -> world"
	glMultMatrixd(view2world)
	glMultMatrixd(self.work2view.t)
	# now we can draw in work coords, and whatever we draw
	# will move with the work, (if the work is attached to
	# a table or indexer or something that moves with
	# respect to the world

	# just a test object, sitting on the table
	#gluCylinder(self.q2, 40, 20, 60, 32, 16)

	#draw head up display
	if(hasattr(self.hud, "draw")):
		self.hud.draw()

	# draw backplot
	glDisable(GL_LIGHTING)
        glLineWidth(2)
        glColor3f(1.0,0.5,0.5)

        glBegin(GL_LINE_STRIP)
	for p in self.plotdata:
	    glVertex3f(*p)
	glEnd()

	glEnable(GL_LIGHTING)
        glColor3f(1,1,1)
        glLineWidth(1)
        glDisable(GL_BLEND)
        glDepthFunc(GL_LESS)

	# back to world again
	glPopMatrix()

class Color(Collection):
    def __init__(self, color, parts):
        self.color = color
        Collection.__init__(self, parts)

    def apply(self):
        glPushAttrib(GL_LIGHTING_BIT)
        glMaterialfv(GL_FRONT_AND_BACK, GL_AMBIENT_AND_DIFFUSE, self.color)

    def unapply(self):
        glPopAttrib()

class AsciiSTL:
    def __init__(self, filename=None, data=None):
        if data is None:
            data = open(filename, "r")
        elif isinstance(data, str):
            data = data.split("\n")
        self.list = None
        t = []
        n = [0,0,0]
        self.d = d = []
        for line in data:
            if line.find("normal") != -1:
                line = line.split()
                x, y, z = map(float, line[-3:])
                n = [x,y,z]
            elif line.find("vertex") != -1:
                line = line.split()
                x, y, z = map(float, line[-3:])
                t.append([x,y,z])
                if len(t) == 3:
                    if n == [0,0,0]:
                        dx1 = t[1][0] - t[0][0]
                        dy1 = t[1][1] - t[0][1]
                        dz1 = t[1][2] - t[0][2]
                        dx2 = t[2][0] - t[0][0]
                        dy2 = t[2][1] - t[0][1]
                        dz2 = t[2][2] - t[0][2]
                        n = [y1*z2 - y2*z1, z1*x2 - z2*x1, y1*x2 - y2*x1]
                    d.append((n, t))
                    t = []
                    n = [0,0,0]

    def draw(self):
        if self.list is None:
            # OpenGL isn't ready yet in __init__ so the display list
            # is created during the first draw
            self.list = glGenLists(1)
            glNewList(self.list, GL_COMPILE_AND_EXECUTE)
            glBegin(GL_TRIANGLES)
            for n, t in self.d:
                glNormal3f(*n)
                glVertex3f(*t[0])
                glVertex3f(*t[1])
                glVertex3f(*t[2])
            glEnd()
            glEndList()
            del self.d
        else:
            glCallList(self.list)

class AsciiOBJ:
    def __init__(self, filename=None, data=None):
        if data is None:
            data = open(filename, "r")
        elif isinstance(data, str):
            data = data.split("\n")

        self.v = v = []
        self.vn = vn = []
        self.f = f = []
        for line in data:
            if line.startswith("#"): continue
            if line.startswith("vn"):
                vn.append([float(w) for w in line.split()[1:]])
            elif line.startswith("v"):
                v.append([float(w) for w in line.split()[1:]])
            elif line.startswith("f"):
                f.append(self.parse_face(line))

#        print v[:5]
#        print vn[:5]
#        print f[:5]

        self.list = None


    def parse_int(self, i):
        if i == '': return None
        return int(i)

    def parse_slash(self, word):
        return [self.parse_int(i) for i in word.split("/")]

    def parse_face(self, line):
        return [self.parse_slash(w) for w in line.split()[1:]]

    def draw(self):
        if self.list is None:
            # OpenGL isn't ready yet in __init__ so the display list
            # is created during the first draw
            self.list = glGenLists(1)
            glNewList(self.list, GL_COMPILE)
            glDisable(GL_CULL_FACE)
            glBegin(GL_TRIANGLES)
            #print "obj", len(self.f)
            for f in self.f:
                for v, t, n in f:
                    if n:
                        glNormal3f(*self.vn[n-1])
                    glVertex3f(*self.v[v-1])
            glEnd()
            glEndList()
            del self.v
            del self.vn
            del self.f
        glCallList(self.list)


def main(model, tool, work, size=10, hud=0, rotation_vectors=None, lat=0, lon=0):
    app = Tkinter.Tk()

    t = O(app, double=1, depth=1)
    # set which axes to rotate around
    if rotation_vectors: t.rotation_vectors = rotation_vectors
    # we want to be able to see the model from all angles
    t.set_latitudelimits(-180, 180)
    # set starting viewpoint if desired
    t.after(100, lambda: t.set_viewangle(lat, lon))

    #there's probably a better way of doing this
    global HUD
    HUD = 0
    if(hud != 0 and hasattr(hud, "app")):
    	HUD = hud
		#point our app at the global
    	t.hud = HUD

    t.hud.app = t #HUD needs to know where to draw

    # need to capture the world coordinate system
    world = Capture()

    t.model = Collection([model, world])
    t.distance = size * 3
    t.near = size * 0.01
    t.far = size * 10.0
    t.tool2view = tool
    t.world2view = world
    t.work2view = work

    t.pack(fill="both", expand=1)

    def update():
	t.tkRedraw()
	t.after(100, update)
    update()

    def quit(*args):
	raise SystemExit

    signal.signal(signal.SIGTERM, quit)
    signal.signal(signal.SIGINT, quit)

    app.mainloop()
то есть из под хал мы можем объекты только перемещать и вращать...
а нам необходимо изменять размер динамически...
Аватара пользователя
Nick
Мастер
Сообщения: 22776
Зарегистрирован: 23 ноя 2009, 16:45
Репутация: 1735
Заслуга: Developer
Откуда: Gatchina, Saint-Petersburg distr., Russia
Контактная информация:

Re: Vismach

Сообщение Nick »

nkp писал(а):а нам необходимо изменять размер динамически...
А зачем?

вот бы к нему приделать визуализацию обработки материала... и поис коллизий... Тут как я понимаю пока просто отрисовка самого станка?
nkp
Мастер
Сообщения: 8340
Зарегистрирован: 28 ноя 2011, 00:25
Репутация: 1589
Контактная информация:

Re: Vismach

Сообщение nkp »

Nick писал(а):визуализацию обработки материала.
так я же за что ;)
вот для этого нам и нужно привязать размер объектов к хал
то есть ,как я вижу это:
вот у нас есть заготовка цилиндрическая l=100 , d=30 (токарка)
протачиваем l=50 на диаметр d=20
что бы показать эту операцию нужно в начальный момент отрисовать цилиндр l=100 , d=30
в дальнейшем заменять набором из двух цилиндров
l=99 , d=30 и l=1 , d=20
l=98 , d=30 и l=2 , d=20
l=97, d=30 и l=3, d=20
l=96 , d=30 и l=4 , d=20
...............................
l=50, d=30 и l=50 , d=20
ну это я грубо так показал ;)
Аватара пользователя
Nick
Мастер
Сообщения: 22776
Зарегистрирован: 23 ноя 2009, 16:45
Репутация: 1735
Заслуга: Developer
Откуда: Gatchina, Saint-Petersburg distr., Russia
Контактная информация:

Re: Vismach

Сообщение Nick »

Мне казалось, что там делаются какие-то хитрые булевы операции... А еще бы не плохо расчитать съем материала, чтобы заранее знать нагрузку на инструмент и если сто подачу уменьшить...
nkp
Мастер
Сообщения: 8340
Зарегистрирован: 28 ноя 2011, 00:25
Репутация: 1589
Контактная информация:

Re: Vismach

Сообщение nkp »

я вот про такое примерно говорил:
https://www.youtube.com/watch?v=l5ucJukbZ1w
Аватара пользователя
Nick
Мастер
Сообщения: 22776
Зарегистрирован: 23 ноя 2009, 16:45
Репутация: 1735
Заслуга: Developer
Откуда: Gatchina, Saint-Petersburg distr., Russia
Контактная информация:

Re: Vismach

Сообщение Nick »

А резьбу как будешь показыать? Или обработку резцом с наклоном, или конус?
nkp
Мастер
Сообщения: 8340
Зарегистрирован: 28 ноя 2011, 00:25
Репутация: 1589
Контактная информация:

Re: Vismach

Сообщение nkp »

я думаю все можно показать
конус:
Рабочий стол 1(006).jpg (7483 просмотра) <a class='original' href='./download/file.php?id=15971&sid=f2024c97553db63b6a2564164f1118cc&mode=view' target=_blank>Загрузить оригинал (26.04 КБ)</a>
nkp
Мастер
Сообщения: 8340
Зарегистрирован: 28 ноя 2011, 00:25
Репутация: 1589
Контактная информация:

Re: Vismach

Сообщение nkp »

резьба (сам принцип):
Выделение(013).jpg (7472 просмотра) <a class='original' href='./download/file.php?id=15987&sid=f2024c97553db63b6a2564164f1118cc&mode=view' target=_blank>Загрузить оригинал (31.02 КБ)</a>
Аватара пользователя
Nick
Мастер
Сообщения: 22776
Зарегистрирован: 23 ноя 2009, 16:45
Репутация: 1735
Заслуга: Developer
Откуда: Gatchina, Saint-Petersburg distr., Russia
Контактная информация:

Re: Vismach

Сообщение Nick »

Так... а теперь рассказывай, как ты все это сделал! :)
nkp
Мастер
Сообщения: 8340
Зарегистрирован: 28 ноя 2011, 00:25
Репутация: 1589
Контактная информация:

Re: Vismach

Сообщение nkp »

вот именно - что я еще ничего не сделал...
отрисовка примитивов уже сделана...
резьба - это набор цилиндров с разным диаметром оснований (усеченный конус)
конечно нужно на такие вещи отдельный класс писать - как уже существуют на куб,цилиндр ,шар и др.
osa1 = CylinderX(-1, 24, 1, 16 )
osa1 = Color([1,0.5,1,0], [osa1] )
osa1 = Translate([osa1],0,0,0,)

(-1, 24, 1, 16 ) -1 и 1 - конечные координаты (длина цилиндра)
24 и 16 - размер оснований
Аватара пользователя
Nick
Мастер
Сообщения: 22776
Зарегистрирован: 23 ноя 2009, 16:45
Репутация: 1735
Заслуга: Developer
Откуда: Gatchina, Saint-Petersburg distr., Russia
Контактная информация:

Re: Vismach

Сообщение Nick »

А что это такое и куда это пихать?
nkp
Мастер
Сообщения: 8340
Зарегистрирован: 28 ноя 2011, 00:25
Репутация: 1589
Контактная информация:

Re: Vismach

Сообщение nkp »

Nick писал(а):что это такое и куда это пихать?
CylinderX - экземпляр класса (цилиндр по оси X)
классы примитивов - в модуле vismach :
(для просмотра содержимого нажмите на ссылку)

Код: Выделить всё

import rs274.OpenGLTk, Tkinter, signal
from minigl import *
from math import *
import glnav

class Collection(object):
    def __init__(self, parts):
	self.parts = parts
	self.vol = 0

    def traverse(self):
	for p in self.parts:
	    if hasattr(p, "apply"):
		p.apply()
	    if hasattr(p, "capture"):
		p.capture()
	    if hasattr(p, "draw"):
		p.draw()
	    if hasattr(p, "traverse"):
		p.traverse()
	    if hasattr(p, "unapply"):
		p.unapply()

    def volume(self):
	if hasattr(self, "vol") and self.vol != 0:
	    vol = self.vol
	else:
	    vol = sum(part.volume() for part in self.parts)
	#print "Collection.volume", vol
	return vol

    # a collection consisting of overlapping parts will have an incorrect
    # volume, because overlapping volumes will be counted twice.  If the
    # correct volume is known, it can be set using this method
    def set_volume(self,vol):
	self.vol = vol;

class Translate(Collection):
    def __init__(self, parts, x, y, z):
	self.parts = parts
	self.where = x, y, z

    def apply(self):
	glPushMatrix()
	glTranslatef(*self.where)

    def unapply(self):
	glPopMatrix()

class Scale(Collection):
    def __init__(self, parts, x, y, z):
	self.parts = parts
	self.scaleby = x, y, z

    def apply(self):
	glPushMatrix()
	glScalef(*self.scaleby)

    def unapply(self):
	glPopMatrix()

class HalTranslate(Collection):
    def __init__(self, parts, comp, var, x, y, z):
	self.parts = parts
	self.where = x, y, z
	self.comp = comp
	self.var = var

    def apply(self):
	x, y, z = self.where
	v = self.comp[self.var]

	glPushMatrix()
	glTranslatef(x*v, y*v, z*v)

    def unapply(self):
	glPopMatrix()


class HalRotate(Collection):
    def __init__(self, parts, comp, var, th, x, y, z):
	self.parts = parts
	self.where = th, x, y, z
	self.comp = comp
	self.var = var

    def apply(self):
	th, x, y, z = self.where
	glPushMatrix()
	glRotatef(th * self.comp[self.var], x, y, z)

    def unapply(self):
	glPopMatrix()


class Rotate(Collection):
    def __init__(self, parts, th, x, y, z):
	self.parts = parts
	self.where = th, x, y, z

    def apply(self):
	th, x, y, z = self.where
	glPushMatrix()
	glRotatef(th, x, y, z)

    def unapply(self):
	glPopMatrix()


class Track(Collection):
    '''move and rotate an object to point from one capture()'d
	coordinate system to another.
	we need "world" to convert coordinates from GL_MODELVIEW coordinates
	to our coordinate system'''
    def __init__(self, parts, position, target, world):
	self.parts = parts
	self.target = target
	self.position = position
	self.world2view = world

    def angle_to(self,x,y,z):
	'''returns polar coordinates in degrees to a point from the origin
	a rotates around the x-axis; b rotates around the y axis; r is the distance'''
	azimuth = atan2(y, x)*180/pi #longitude
	elevation = atan2(z, sqrt(x**2 + y**2))*180/pi
	radius = sqrt(x**2+y**2+z**2)
	return((azimuth, elevation, radius))

    def map_coords(self,tx,ty,tz,transform):
	# now we have to transform them to the world frame
	wx = tx*transform[0]+ty*transform[4]+tz*transform[8]+transform[12]
	wy = tx*transform[1]+ty*transform[5]+tz*transform[9]+transform[13]
	wz = tx*transform[2]+ty*transform[6]+tz*transform[10]+transform[14]
	return([wx,wy,wz])


    def apply(self):
	#make sure we have something to work with first
	if (self.world2view.t == []):
		#something's borkled - give up
		print "vismach.py: Track: why am i here? world is not in the scene yet"
		glPushMatrix()
		return

	view2world = invert(self.world2view.t)

	px, py, pz = self.position.t[12:15]
	px, py, pz = self.map_coords(px,py,pz,view2world)
	tx, ty, tz = self.target.t[12:15]
	tx, ty, tz = self.map_coords(tx,ty,tz,view2world)
	dx = tx - px; dy = ty - py; dz = tz - pz;
	(az,el,r) = self.angle_to(dx,dy,dz)
	if(hasattr(HUD, "debug_track") and HUD.debug_track == 1):
		HUD.strs = []
		HUD.strs += ["current coords: %3.4f %3.4f %3.4f " % (px, py, pz)]
		HUD.strs += ["target coords: %3.4f %3.4f %3.4f" %  (tx, ty, tz)]
		HUD.strs += ["az,el,r: %3.4f %3.4f %3.4f" %  (az,el,r)]
	glPushMatrix()
	glTranslatef(px,py,pz)
	glRotatef(az-90,0,0,1)
	glRotatef(el-90,1,0,0)


    def unapply(self):
		glPopMatrix()

class CoordsBase(object):
    def __init__(self, *args):
	self._coords = args
	self.q = gluNewQuadric()

    def coords(self):
	return self._coords

# give endpoint X values and radii
# resulting cylinder is on the X axis
class CylinderX(CoordsBase):
    def draw(self):
	x1, r1, x2, r2 = self.coords()
	if x1 > x2:
	    tmp = x1
	    x1 = x2
	    x2 = tmp
	    tmp = r1
	    r1 = r2
	    r2 = tmp
	glPushMatrix()
	# GL creates cylinders along Z, so need to rotate
	z1 = x1
	z2 = x2
	glRotatef(90,0,1,0)
	# need to translate the whole thing to z1
	glTranslatef(0,0,z1)
	# the cylinder starts out at Z=0
	gluCylinder(self.q, r1, r2, z2-z1, 32, 1)
	# bottom cap
	glRotatef(180,1,0,0)
	gluDisk(self.q, 0, r1, 32, 1)
	glRotatef(180,1,0,0)
	# the top cap needs flipped and translated
	glPushMatrix()
	glTranslatef(0,0,z2-z1)
	gluDisk(self.q, 0, r2, 32, 1)
	glPopMatrix()
	glPopMatrix()

    def volume(self):
	x1, r1, x2, r2 = self.coords()
	# actually a frustum of a cone
	vol = 3.1415927/3.0 * abs(x1-x2)*(r1*r1+r1*r2+r2*r2)
	#print "CylinderX.volume", vol
	return vol


# give endpoint Y values and radii
# resulting cylinder is on the Y axis
class CylinderY(CoordsBase):
    def __init__(self, y1, r1, y2, r2):
	self._coords = y1, r1, y2, r2
	self.q = gluNewQuadric()

    def draw(self):
	y1, r1, y2, r2 = self.coords()
	if y1 > y2:
	    tmp = y1
	    y1 = y2
	    y2 = tmp
	    tmp = r1
	    r1 = r2
	    r2 = tmp
	glPushMatrix()
	# GL creates cylinders along Z, so need to rotate
	z1 = y1
	z2 = y2
	glRotatef(-90,1,0,0)
	# need to translate the whole thing to z1
	glTranslatef(0,0,z1)
	# the cylinder starts out at Z=0
	gluCylinder(self.q, r1, r2, z2-z1, 32, 1)
	# bottom cap
	glRotatef(180,1,0,0)
	gluDisk(self.q, 0, r1, 32, 1)
	glRotatef(180,1,0,0)
	# the top cap needs flipped and translated
	glPushMatrix()
	glTranslatef(0,0,z2-z1)
	gluDisk(self.q, 0, r2, 32, 1)
	glPopMatrix()
	glPopMatrix()

    def volume(self):
	y1, r1, y2, r2 = self.coords()
	# actually a frustum of a cone
	vol = 3.1415927/3.0 * abs(y1-y2)*(r1*r1+r1*r2+r2*r2)
	#print "CylinderY.volume", vol
	return vol


class CylinderZ(CoordsBase):
    def draw(self):
	z1, r1, z2, r2 = self.coords()
	if z1 > z2:
	    tmp = z1
	    z1 = z2
	    z2 = tmp
	    tmp = r1
	    r1 = r2
	    r2 = tmp
	# need to translate the whole thing to z1
	glPushMatrix()
	glTranslatef(0,0,z1)
	# the cylinder starts out at Z=0
	gluCylinder(self.q, r1, r2, z2-z1, 32, 1)
	# bottom cap
	glRotatef(180,1,0,0)
	gluDisk(self.q, 0, r1, 32, 1)
	glRotatef(180,1,0,0)
	# the top cap needs flipped and translated
	glPushMatrix()
	glTranslatef(0,0,z2-z1)
	gluDisk(self.q, 0, r2, 32, 1)
	glPopMatrix()
	glPopMatrix()

    def volume(self):
	z1, r1, z2, r2 = self.coords()
	# actually a frustum of a cone
	vol = 3.1415927/3.0 * abs(z1-z2)*(r1*r1+r1*r2+r2*r2)
	#print "CylinderZ.volume", vol
	return vol

# give center and radius
class Sphere(CoordsBase):
    def draw(self):
	x, y, z, r = self.coords()
	# need to translate the whole thing to x,y,z
	glPushMatrix()
	glTranslatef(x,y,z)
	# the sphere starts out at the origin
	gluSphere(self.q, r, 32, 16)
	glPopMatrix()

    def volume(self):
	x, y, z, r = self.coords()
	vol = 1.3333333*3.1415927*r*r*r
	#print "Sphere.volume", vol
	return vol


# triangular plate in XY plane
# specify the corners Z values for each side
class TriangleXY(CoordsBase):
    def draw(self):
	x1, y1, x2, y2, x3, y3, z1, z2 = self.coords()
	x12 = x1-x2
	y12 = y1-y2
	x13 = x1-x3
	y13 = y1-y3
	cross = x12*y13 - x13*y12
	if cross < 0:
	    tmp = x2
	    x2 = x3
	    x3 = tmp
	    tmp = y2
	    y2 = y3
	    y3 = tmp
        if z1 > z2:
	    tmp = z1
	    z1 = z2
	    z2 = tmp
	x12 = x1-x2
	y12 = y1-y2
	x23 = x2-x3
	y23 = y2-y3
	x31 = x3-x1
	y31 = y3-y1
        glBegin(GL_QUADS)
	# side 1-2
	h = hypot(x12,y12)
        glNormal3f(-y12/h,x12/h,0)
        glVertex3f(x1, y1, z1)
        glVertex3f(x2, y2, z1)
        glVertex3f(x2, y2, z2)
        glVertex3f(x1, y1, z2)
	# side 2-3
	h = hypot(x23,y23)
        glNormal3f(-y23/h,x23/h,0)
        glVertex3f(x2, y2, z1)
        glVertex3f(x3, y3, z1)
        glVertex3f(x3, y3, z2)
        glVertex3f(x2, y2, z2)
	# side 3-1
	h = hypot(x31,y31)
        glNormal3f(-y31/h,x31/h,0)
        glVertex3f(x3, y3, z1)
        glVertex3f(x1, y1, z1)
        glVertex3f(x1, y1, z2)
        glVertex3f(x3, y3, z2)
        glEnd()
        glBegin(GL_TRIANGLES)
	# upper face
        glNormal3f(0,0,1)
        glVertex3f(x1, y1, z2)
        glVertex3f(x2, y2, z2)
        glVertex3f(x3, y3, z2)
	# lower face
        glNormal3f(0,0,-1)
        glVertex3f(x1, y1, z1)
        glVertex3f(x3, y3, z1)
        glVertex3f(x2, y2, z1)
        glEnd()

    def volume(self):
	x1, y1, x2, y2, x3, y3, z1, z2 = self.coords()
	# compute pts 2 and 3 relative to 1 (puts pt1 at origin)
	x2 = x2-x1
	x3 = x3-x1
	y2 = y2-y1
	y3 = y3-y1
	# compute area of triangle
	area = 0.5*abs(x2*y3 - x3*y2)
	thk = abs(z1-z2)
	vol = area*thk
	#print "TriangleXY.volume = area * thickness)",vol, area, thk
	return vol

# triangular plate in XZ plane
class TriangleXZ(TriangleXY):
    def coords(self):
	x1, z1, x2, z2, x3, z3, y1, y2 = TriangleXY.coords(self)
	return x1, z1, x2, z2, x3, z3, -y1, -y2

    def draw(self):
	glPushMatrix()
	glRotatef(90,1,0,0)
	# create the triangle in XY plane
	TriangleXY.draw(self)
	# bottom cap
	glPopMatrix()

    def volume(self):
	vol = TriangleXY.volume(self)
	#print " TriangleXZ.volume",vol
	return vol

# triangular plate in YZ plane
class TriangleYZ(TriangleXY):
    def coords(self):
	y1, z1, y2, z2, y3, z3, x1, x2 = TriangleXY.coords(self)
	return z1, y1, z2, y2, z3, y3, -x1, -x2

    def draw(self):
	glPushMatrix()
	glRotatef(90,0,-1,0)
	# create the triangle in XY plane
	TriangleXY.draw(self)
	# bottom cap
	glPopMatrix()

    def volume(self):
	vol = TriangleXY.volume(self)
	#print " TriangleYZ.volume",vol
	return vol


class ArcX(CoordsBase):
    def draw(self):
	x1, x2, r1, r2, a1, a2, steps = self.coords()
	if x1 > x2:
	    tmp = x1
	    x1 = x2
	    x2 = tmp
	if r1 > r2:
	    tmp = r1
	    r1 = r2
	    r2 = tmp
	while a1 > a2:
	    a2 = a2 + 360
	astep = ((a2-a1)/steps)*(pi/180)
	a1rads = a1 * (pi/180)
	# positive X end face
	glBegin(GL_QUAD_STRIP)
	glNormal3f(1,0,0)
	n = 0
	while n <= steps:
	    angle = a1rads+n*astep
	    s = sin(angle)
	    c = cos(angle)
	    glVertex3f(x2, r1*s, r1*c)
	    glVertex3f(x2, r2*s, r2*c)
	    n = n + 1

	glEnd()
	# negative X end face
	glBegin(GL_QUAD_STRIP)
	glNormal3f(-1,0,0)
	n = 0
	while n <= steps:
	    angle = a1rads+n*astep
	    s = sin(angle)
	    c = cos(angle)
	    glVertex3f(x1, r1*s, r1*c)
	    glVertex3f(x1, r2*s, r2*c)
	    n = n + 1
	glEnd()
	# inner diameter
	glBegin(GL_QUAD_STRIP)
	n = 0
	while n <= steps:
	    angle = a1rads+n*astep
	    s = sin(angle)
	    c = cos(angle)
	    glNormal3f(0,-s, -c)
	    glVertex3f(x1, r1*s, r1*c)
	    glVertex3f(x2, r1*s, r1*c)
	    n = n + 1
	glEnd()
	# outer diameter
	glBegin(GL_QUAD_STRIP)
	n = 0
	while n <= steps:
	    angle = a1rads+n*astep
	    s = sin(angle)
	    c = cos(angle)
	    glNormal3f(0, s, c)
	    glVertex3f(x1, r2*s, r2*c)
	    glVertex3f(x2, r2*s, r2*c)
	    n = n + 1
	glEnd()
	# end plates
	glBegin(GL_QUADS)
	# first end plate
	angle = a1 * (pi/180)
	s = sin(angle)
	c = cos(angle)
	glNormal3f(0, -c, s)
	glVertex3f(x1, r2*s, r2*c)
	glVertex3f(x2, r2*s, r2*c)
	glVertex3f(x2, r1*s, r1*c)
	glVertex3f(x1, r1*s, r1*c)
	# other end
	angle = a2 * (pi/180)
	s = sin(angle)
	c = cos(angle)
	glNormal3f(0, c, -s)
	glVertex3f(x1, r2*s, r2*c)
	glVertex3f(x2, r2*s, r2*c)
	glVertex3f(x2, r1*s, r1*c)
	glVertex3f(x1, r1*s, r1*c)
	glEnd()

    def volume(self):
	x1, x2, r1, r2, a1, a2, steps = self.coords()
	if x1 > x2:
	    tmp = x1
	    x1 = x2
	    x2 = tmp
	if r1 > r2:
	    tmp = r1
	    r1 = r2
	    r2 = tmp
	while a1 > a2:
	    a2 = a2 + 360
	height = x2 - x1
	angle = a2 - a1
	area = (angle/360.0)*pi*(r2*r2-r1*r1)
	vol = area * height
	#print "Arc.volume = angle * area * height",vol, angle, area, height
	return vol




# six coordinate version - specify each side of the box
class Box(CoordsBase):
    def draw(self):
        x1, y1, z1, x2, y2, z2 = self.coords()
        if x1 > x2:
	    tmp = x1
	    x1 = x2
	    x2 = tmp
        if y1 > y2:
	    tmp = y1
	    y1 = y2
	    y2 = tmp
        if z1 > z2:
	    tmp = z1
	    z1 = z2
	    z2 = tmp

        glBegin(GL_QUADS)
	# bottom face
        glNormal3f(0,0,-1)
        glVertex3f(x2, y1, z1)
        glVertex3f(x1, y1, z1)
        glVertex3f(x1, y2, z1)
        glVertex3f(x2, y2, z1)
	# positive X face
        glNormal3f(1,0,0)
        glVertex3f(x2, y1, z1)
        glVertex3f(x2, y2, z1)
        glVertex3f(x2, y2, z2)
        glVertex3f(x2, y1, z2)
	# positive Y face
        glNormal3f(0,1,0)
        glVertex3f(x1, y2, z1)
        glVertex3f(x1, y2, z2)
        glVertex3f(x2, y2, z2)
        glVertex3f(x2, y2, z1)
	# negative Y face
        glNormal3f(0,-1,0)
        glVertex3f(x2, y1, z2)
        glVertex3f(x1, y1, z2)
        glVertex3f(x1, y1, z1)
        glVertex3f(x2, y1, z1)
	# negative X face
        glNormal3f(-1,0,0)
        glVertex3f(x1, y1, z1)
        glVertex3f(x1, y1, z2)
        glVertex3f(x1, y2, z2)
        glVertex3f(x1, y2, z1)
	# top face
        glNormal3f(0,0,1)
        glVertex3f(x1, y2, z2)
        glVertex3f(x1, y1, z2)
        glVertex3f(x2, y1, z2)
        glVertex3f(x2, y2, z2)
        glEnd()

    def volume(self):
        x1, y1, z1, x2, y2, z2 = self.coords()
        vol = abs((x1-x2)*(y1-y2)*(z1-z2))
	#print "Box.volume", vol
	return vol


# specify the width in X and Y, and the height in Z
# the box is centered on the origin
class BoxCentered(Box):
    def __init__(self, xw, yw, zw):
	Box.__init__(self, -xw/2.0, -yw/2.0, -zw/2.0, xw/2.0, yw/2.0, zw/2.0)

# specify the width in X and Y, and the height in Z
# the box is centered in X and Y, and runs from Z=0 up
# (or down) to the specified Z value
class BoxCenteredXY(Box):
    def __init__(self, xw, yw, zw):
	Box.__init__(self, -xw/2.0, -yw/2.0, 0, xw/2.0, yw/2.0, zw)

# capture current transformation matrix
# note that this tranforms from the current coordinate system
# to the viewport system, NOT to the world system
class Capture(object):
    def __init__(self):
	self.t = []

    def capture(self):
	self.t = glGetDoublev(GL_MODELVIEW_MATRIX)

    def volume(self):
	return 0.0

# function to invert a transform matrix
# based on http://steve.hollasch.net/cgindex/math/matrix/afforthinv.c
# with simplifications since we don't do scaling

# This function inverts a 4x4 matrix that is affine and orthogonal.  In
# other words, the perspective components are [0 0 0 1], and the basis
# vectors are orthogonal to each other.  In addition, the matrix must
# not do scaling

def invert(src):
	# make a copy
	inv=src[:]
	# The inverse of the upper 3x3 is the transpose (since the basis
	# vectors are orthogonal to each other.
	inv[1],inv[4] = inv[4],inv[1]
	inv[2],inv[8] = inv[8],inv[2]
	inv[6],inv[9] = inv[9],inv[6]
	# The inverse of the translation component is just the negation
	# of the translation after dotting with the new upper3x3 rows. */
	inv[12] = -(src[12]*inv[0] + src[13]*inv[4] + src[14]*inv[8])
	inv[13] = -(src[12]*inv[1] + src[13]*inv[5] + src[14]*inv[9])
	inv[14] = -(src[12]*inv[2] + src[13]*inv[6] + src[14]*inv[10])
	return inv

class Hud(object):
	'''head up display - draws a semi-transparent text box.
	use HUD.strs for things that must be updated constantly,
	and HUD.show("stuff") for one-shot things like error messages'''
	def __init__(self,  showme=1):
		self.app = []
		self.strs = []
		self.messages = []
		self.showme = 0

	def show(self, string="xyzzy"):
		self.showme = 1
		if string != "xyzzy":
			self.messages += [str(string)]

	def hide(self):
		self.showme = 0

	def clear(self):
		self.messages = []

	def draw(self):
		drawtext = self.strs + self.messages
		self.lines = len(drawtext)
		#draw head-up-display
		#see axis.py for more font/color configurability
		if ((self.showme == 0) or (self.lines == 0)):
			return

		glMatrixMode(GL_PROJECTION)
		glPushMatrix()
		glLoadIdentity()

		#pointer to font?
		fontbase = int(self.app.loadbitmapfont("9x15"))
		char_width, char_height = 9, 15
		xmargin,ymargin = 5,5
		ypos = float(self.app.winfo_height())

		glOrtho(0.0, self.app.winfo_width(), 0.0, ypos, -1.0, 1.0)
		glMatrixMode(GL_MODELVIEW)
		glPushMatrix()
		glLoadIdentity()

		#draw the text box
		maxlen = max([len(p) for p in drawtext])
		box_width = maxlen * char_width
		glDepthFunc(GL_ALWAYS)
		glDepthMask(GL_FALSE)
		glDisable(GL_LIGHTING)
		glEnable(GL_BLEND)
		glEnable(GL_NORMALIZE)
		glBlendFunc(GL_ONE, GL_CONSTANT_ALPHA)
		glColor3f(0.2,0,0)
		glBlendColor(0,0,0,0.5) #rgba
		glBegin(GL_QUADS)
		glVertex3f(0, ypos, 1) #upper left
		glVertex3f(0, ypos - 2*ymargin - char_height*len(drawtext), 1) #lower left
		glVertex3f(box_width+2*xmargin, ypos - 2*ymargin - char_height*len(drawtext), 1) #lower right
		glVertex3f(box_width+2*xmargin,  ypos , 1) #upper right
		glEnd()
		glDisable(GL_BLEND)
		glEnable(GL_LIGHTING)

		#fill the box with text
		maxlen = 0
		ypos -= char_height+ymargin
		i=0
		glDisable(GL_LIGHTING)
		glColor3f(0.9,0.9,0.9)
		for string in drawtext:
			maxlen = max(maxlen, len(string))
		#	if i < len(homed) and homed[i]:
		#		glRasterPos2i(6, ypos)
		#		glBitmap(13, 16, 0, 3, 17, 0, homeicon)
			glRasterPos2i(xmargin, int(ypos))
			for char in string:
				glCallList(fontbase + ord(char))
		#	if i < len(homed) and limit[i]:
		#		glBitmap(13, 16, -5, 3, 17, 0, limiticon)
			ypos -= char_height
			i = i + 1
		glDepthFunc(GL_LESS)
		glDepthMask(GL_TRUE)
		glEnable(GL_LIGHTING)

		glPopMatrix()
		glMatrixMode(GL_PROJECTION)
		glPopMatrix()
		glMatrixMode(GL_MODELVIEW)


class O(rs274.OpenGLTk.Opengl):
    def __init__(self, *args, **kw):
        rs274.OpenGLTk.Opengl.__init__(self, *args, **kw)
        self.r_back = self.g_back = self.b_back = 0
	#self.q1 = gluNewQuadric()
	#self.q2 = gluNewQuadric()
	#self.q3 = gluNewQuadric()
	self.plotdata = []
	self.plotlen = 4000
	#does not show HUD by default
	self.hud = Hud()

    def basic_lighting(self):
        self.activate()
        glLightfv(GL_LIGHT0, GL_POSITION, (1, -1, .5, 0))
        glLightfv(GL_LIGHT0, GL_AMBIENT, (.2,.2,.2,0))
        glLightfv(GL_LIGHT0, GL_DIFFUSE, (.6,.6,.4,0))
        glLightfv(GL_LIGHT0+1, GL_POSITION, (-1, -1, .5, 0))
        glLightfv(GL_LIGHT0+1, GL_AMBIENT, (.0,.0,.0,0))
        glLightfv(GL_LIGHT0+1, GL_DIFFUSE, (.0,.0,.4,0))
        glMaterialfv(GL_FRONT_AND_BACK, GL_AMBIENT_AND_DIFFUSE, (1,1,1,0))
	glDisable(GL_CULL_FACE)
        glEnable(GL_LIGHTING)
        glEnable(GL_LIGHT0)
        glEnable(GL_LIGHT0+1)
        glDepthFunc(GL_LESS)
        glEnable(GL_DEPTH_TEST)
        glMatrixMode(GL_MODELVIEW)
        glLoadIdentity()




    def redraw(self, *args):
        if self.winfo_width() == 1: return
        self.model.traverse()
	# current coords: world
	# the matrices tool2view, work2view, and world2view
	# transform from tool/work/world coords to viewport coords
	# if we want to draw in tool coords, we need to do
	# "tool -> view -> world" (since the current frame is world)
	# and if we want to draw in work coords, we need
	# "work -> view -> world".  For both, we need to invert
	# the world2view matrix to do the second step
	view2world = invert(self.world2view.t)
	# likewise, for backplot, we want to transform the tooltip
	# position from tool coords (where it is [0,0,0]) to work
	# coords, so we need tool -> view -> work
	# so lets also invert the work2view matrix
	view2work = invert(self.work2view.t)

	# since backplot lines only need vertexes, not orientation,
	# and the tooltip is at the origin, getting the tool coords
	# is easy
	tx, ty, tz = self.tool2view.t[12:15]
	# now we have to transform them to the work frame
	wx = tx*view2work[0]+ty*view2work[4]+tz*view2work[8]+view2work[12]
	wy = tx*view2work[1]+ty*view2work[5]+tz*view2work[9]+view2work[13]
	wz = tx*view2work[2]+ty*view2work[6]+tz*view2work[10]+view2work[14]
	# wx, wy, wz are the values to use for backplot
	# so we save them in a buffer
        if len(self.plotdata) == self.plotlen:
	    del self.plotdata[:self.plotlen / 10]
	point = [ wx, wy, wz ]
	if not self.plotdata or point != self.plotdata[-1]:
	    self.plotdata.append(point)

	# now lets draw something in the tool coordinate system
	#glPushMatrix()
	# matrixes take effect in reverse order, so the next
	# two lines do "tool -> view -> world"
	#glMultMatrixd(view2world)
	#glMultMatrixd(self.tool2view.t)

	# do drawing here
	# cylinder normally goes to +Z, we want it down
	#glTranslatef(0,0,-60)
	#gluCylinder(self.q1, 20, 20, 60, 32, 16)

	# back to world coords
	#glPopMatrix()


	# we can also draw in the work coord system
	glPushMatrix()
	# "work -> view -> world"
	glMultMatrixd(view2world)
	glMultMatrixd(self.work2view.t)
	# now we can draw in work coords, and whatever we draw
	# will move with the work, (if the work is attached to
	# a table or indexer or something that moves with
	# respect to the world

	# just a test object, sitting on the table
	#gluCylinder(self.q2, 40, 20, 60, 32, 16)

	#draw head up display
	if(hasattr(self.hud, "draw")):
		self.hud.draw()

	# draw backplot
	glDisable(GL_LIGHTING)
        glLineWidth(2)
        glColor3f(1.0,0.5,0.5)

        glBegin(GL_LINE_STRIP)
	for p in self.plotdata:
	    glVertex3f(*p)
	glEnd()

	glEnable(GL_LIGHTING)
        glColor3f(1,1,1)
        glLineWidth(1)
        glDisable(GL_BLEND)
        glDepthFunc(GL_LESS)

	# back to world again
	glPopMatrix()

class Color(Collection):
    def __init__(self, color, parts):
        self.color = color
        Collection.__init__(self, parts)

    def apply(self):
        glPushAttrib(GL_LIGHTING_BIT)
        glMaterialfv(GL_FRONT_AND_BACK, GL_AMBIENT_AND_DIFFUSE, self.color)

    def unapply(self):
        glPopAttrib()

class AsciiSTL:
    def __init__(self, filename=None, data=None):
        if data is None:
            data = open(filename, "r")
        elif isinstance(data, str):
            data = data.split("\n")
        self.list = None
        t = []
        n = [0,0,0]
        self.d = d = []
        for line in data:
            if line.find("normal") != -1:
                line = line.split()
                x, y, z = map(float, line[-3:])
                n = [x,y,z]
            elif line.find("vertex") != -1:
                line = line.split()
                x, y, z = map(float, line[-3:])
                t.append([x,y,z])
                if len(t) == 3:
                    if n == [0,0,0]:
                        dx1 = t[1][0] - t[0][0]
                        dy1 = t[1][1] - t[0][1]
                        dz1 = t[1][2] - t[0][2]
                        dx2 = t[2][0] - t[0][0]
                        dy2 = t[2][1] - t[0][1]
                        dz2 = t[2][2] - t[0][2]
                        n = [y1*z2 - y2*z1, z1*x2 - z2*x1, y1*x2 - y2*x1]
                    d.append((n, t))
                    t = []
                    n = [0,0,0]

    def draw(self):
        if self.list is None:
            # OpenGL isn't ready yet in __init__ so the display list
            # is created during the first draw
            self.list = glGenLists(1)
            glNewList(self.list, GL_COMPILE_AND_EXECUTE)
            glBegin(GL_TRIANGLES)
            for n, t in self.d:
                glNormal3f(*n)
                glVertex3f(*t[0])
                glVertex3f(*t[1])
                glVertex3f(*t[2])
            glEnd()
            glEndList()
            del self.d
        else:
            glCallList(self.list)

class AsciiOBJ:
    def __init__(self, filename=None, data=None):
        if data is None:
            data = open(filename, "r")
        elif isinstance(data, str):
            data = data.split("\n")

        self.v = v = []
        self.vn = vn = []
        self.f = f = []
        for line in data:
            if line.startswith("#"): continue
            if line.startswith("vn"):
                vn.append([float(w) for w in line.split()[1:]])
            elif line.startswith("v"):
                v.append([float(w) for w in line.split()[1:]])
            elif line.startswith("f"):
                f.append(self.parse_face(line))

#        print v[:5]
#        print vn[:5]
#        print f[:5]

        self.list = None


    def parse_int(self, i):
        if i == '': return None
        return int(i)

    def parse_slash(self, word):
        return [self.parse_int(i) for i in word.split("/")]

    def parse_face(self, line):
        return [self.parse_slash(w) for w in line.split()[1:]]

    def draw(self):
        if self.list is None:
            # OpenGL isn't ready yet in __init__ so the display list
            # is created during the first draw
            self.list = glGenLists(1)
            glNewList(self.list, GL_COMPILE)
            glDisable(GL_CULL_FACE)
            glBegin(GL_TRIANGLES)
            #print "obj", len(self.f)
            for f in self.f:
                for v, t, n in f:
                    if n:
                        glNormal3f(*self.vn[n-1])
                    glVertex3f(*self.v[v-1])
            glEnd()
            glEndList()
            del self.v
            del self.vn
            del self.f
        glCallList(self.list)


def main(model, tool, work, size=10, hud=0, rotation_vectors=None, lat=0, lon=0):
    app = Tkinter.Tk()

    t = O(app, double=1, depth=1)
    # set which axes to rotate around
    if rotation_vectors: t.rotation_vectors = rotation_vectors
    # we want to be able to see the model from all angles
    t.set_latitudelimits(-180, 180)
    # set starting viewpoint if desired
    t.after(100, lambda: t.set_viewangle(lat, lon))

    #there's probably a better way of doing this
    global HUD
    HUD = 0
    if(hud != 0 and hasattr(hud, "app")):
    	HUD = hud
		#point our app at the global
    	t.hud = HUD

    t.hud.app = t #HUD needs to know where to draw

    # need to capture the world coordinate system
    world = Capture()

    t.model = Collection([model, world])
    t.distance = size * 3
    t.near = size * 0.01
    t.far = size * 10.0
    t.tool2view = tool
    t.world2view = world
    t.work2view = work

    t.pack(fill="both", expand=1)

    def update():
	t.tkRedraw()
	t.after(100, update)
    update()

    def quit(*args):
	raise SystemExit

    signal.signal(signal.SIGTERM, quit)
    signal.signal(signal.SIGINT, quit)

    app.mainloop()
он в свою очередь через OpenGLTk.py и minigl.c использует функции PyOpenGL (связка питона с OpenGL)
вот для примера :

Код: Выделить всё

#!/usr/bin/python

from vismach import *

### hal part:
#import hal
#c = hal.component("this_file_name")
#c.newpin("joint0", hal.HAL_FLOAT, hal.HAL_IN)  # create pins like this to control this drawing
#c.ready()

### Store tooltip coordinates system:
tooltip = Capture()

### Create the tooltip objects
tool = Collection([tooltip,Box(-15, -15, -15, 15, 15, 15)])


### Here there should be the other linked objects from the tooltip to the base (see other examples)

### Store work coord system:
work = Capture()

### Define the model (which is made of all objects?):
model = Collection([work, tool])

### Finally the drawing cycle - from vismach.py:{def main(model, tool, work, size=10, hud=0, rotation_vectors=None, lat=0, lon=0)}
### size: is the camera zoom
### hud: should be to write on a semi-trasparent box inside the window
### lat and lon: are the rotation of the camera
main(model, tooltip, work, 30,0,0,-90,-90)
вот пример с привязкой к хал:

Код: Выделить всё

#!/usr/bin/python
# -*- coding: utf-8 -*-
from vismach import *
import hal
import math
import sys

class HalToolCylinder(CylinderZ):
    def __init__(self, comp, *args):
	CylinderZ.__init__(self, *args)
	self.comp = comp

    def coords(self):
        return (-144, self.comp["tool-radius"],self.comp["tool-length"],self.comp["tool-radius"])

c = hal.component("hbmgui")
c.newpin("tool-length", hal.HAL_FLOAT, hal.HAL_IN)
c.newpin("tool-length1", hal.HAL_FLOAT, hal.HAL_IN)
c.newpin("tool-radius", hal.HAL_FLOAT, hal.HAL_IN)
c.ready()

tooltip = Capture()

tool = Collection([HalTranslate([tooltip], c, "tool-length", 0, 0, 0),HalToolCylinder(c)])
tool = Color([0.8,0.9,0.9,0], [tool] )

finger1 = CylinderZ(-52, 22, 47,12)
finger1= Color([0.8,0.3,0.8,0], [finger1])
link5 = Translate([finger1],0,0,0.070)

work = Capture()
model = Collection([work  , tool  ,link5 ])
model = Rotate([model],80,1,0,0)
main(model, tooltip, work, 200, lat=-60, lon=40)
здесь рисуем два цилиндра , и длину одного через хал изменяем:
Lathe.tar
(20 КБ) 487 скачиваний
nkp
Мастер
Сообщения: 8340
Зарегистрирован: 28 ноя 2011, 00:25
Репутация: 1589
Контактная информация:

Re: Vismach

Сообщение nkp »

почему еще интересна эта тема - axis построен (как я понял) через minigl.c на функционале OpenGL
но работает наверно напрямую - от планировщика , а не через хал.
upd:
'axis построен' - точнее - визуализация в axis...
Последний раз редактировалось nkp 04 июл 2013, 09:08, всего редактировалось 1 раз.
Impartial
Мастер
Сообщения: 953
Зарегистрирован: 23 фев 2011, 01:50
Репутация: 36
Контактная информация:

Re: Vismach

Сообщение Impartial »

Аксис написан как скрипт \linuxcnc-2036365\share\axis\tcl\axis.tcl
А что его выполняет в линуксе?
nkp
Мастер
Сообщения: 8340
Зарегистрирован: 28 ноя 2011, 00:25
Репутация: 1589
Контактная информация:

Re: Vismach

Сообщение nkp »

Impartial писал(а):А что его выполняет в линуксе?
bin/axis.py
если я правильно вопрос понял ;)
axis.tcl - это всего лишь "морда"
а функционал - в axis.py
axis.tar
(130 КБ) 495 скачиваний
Impartial
Мастер
Сообщения: 953
Зарегистрирован: 23 фев 2011, 01:50
Репутация: 36
Контактная информация:

Re: Vismach

Сообщение Impartial »

Я морду и имел в виду.
Аватара пользователя
Serg
Мастер
Сообщения: 21923
Зарегистрирован: 17 апр 2012, 14:58
Репутация: 5181
Заслуга: c781c134843e0c1a3de9
Настоящее имя: Сергей
Откуда: Москва
Контактная информация:

Re: Vismach

Сообщение Serg »

nkp писал(а):axis.tcl - это всего лишь "морда"
а функционал - в axis.py
и функционал и морда есть в обоих частях. Мне кажется, что в какой-то момент автора просто достало использовать "обертку" Tk в Python и он просто начал писать на чистом Tcl/Tk. :)
Impartial писал(а):А что его выполняет в линуксе?
Python запускает интерпритатор Tcl и в нём выполняет. "Библиотеку" Python-Tk он тоже так-же выполняет.
Я не Христос, рыбу не раздаю, но могу научить, как сделать удочку...
Impartial
Мастер
Сообщения: 953
Зарегистрирован: 23 фев 2011, 01:50
Репутация: 36
Контактная информация:

Re: Vismach

Сообщение Impartial »

А что такое Тк?
Impartial
Мастер
Сообщения: 953
Зарегистрирован: 23 фев 2011, 01:50
Репутация: 36
Контактная информация:

Re: Vismach

Сообщение Impartial »

UAVpilot писал(а):Python запускает интерпритатор Tcl и в нём выполняет. "Библиотеку" Python-Tk он тоже так-же выполняет.
А этот интерпритатор имеет какой то стандарт?
nkp
Мастер
Сообщения: 8340
Зарегистрирован: 28 ноя 2011, 00:25
Репутация: 1589
Контактная информация:

Re: Vismach

Сообщение nkp »

Tk
Impartial писал(а):этот интерпритатор имеет какой то стандарт?
а какой у него может быть стандарт? это программа - которая выполняет наш код на компьютере (в данном случае написанный на тикль) построчно ....
Ответить

Вернуться в «LinuxCNC»
